Lifting Magnet for Vertical Plate Lifting

Rotating a load safely from horizontal to vertical with a Magnetic Lifter

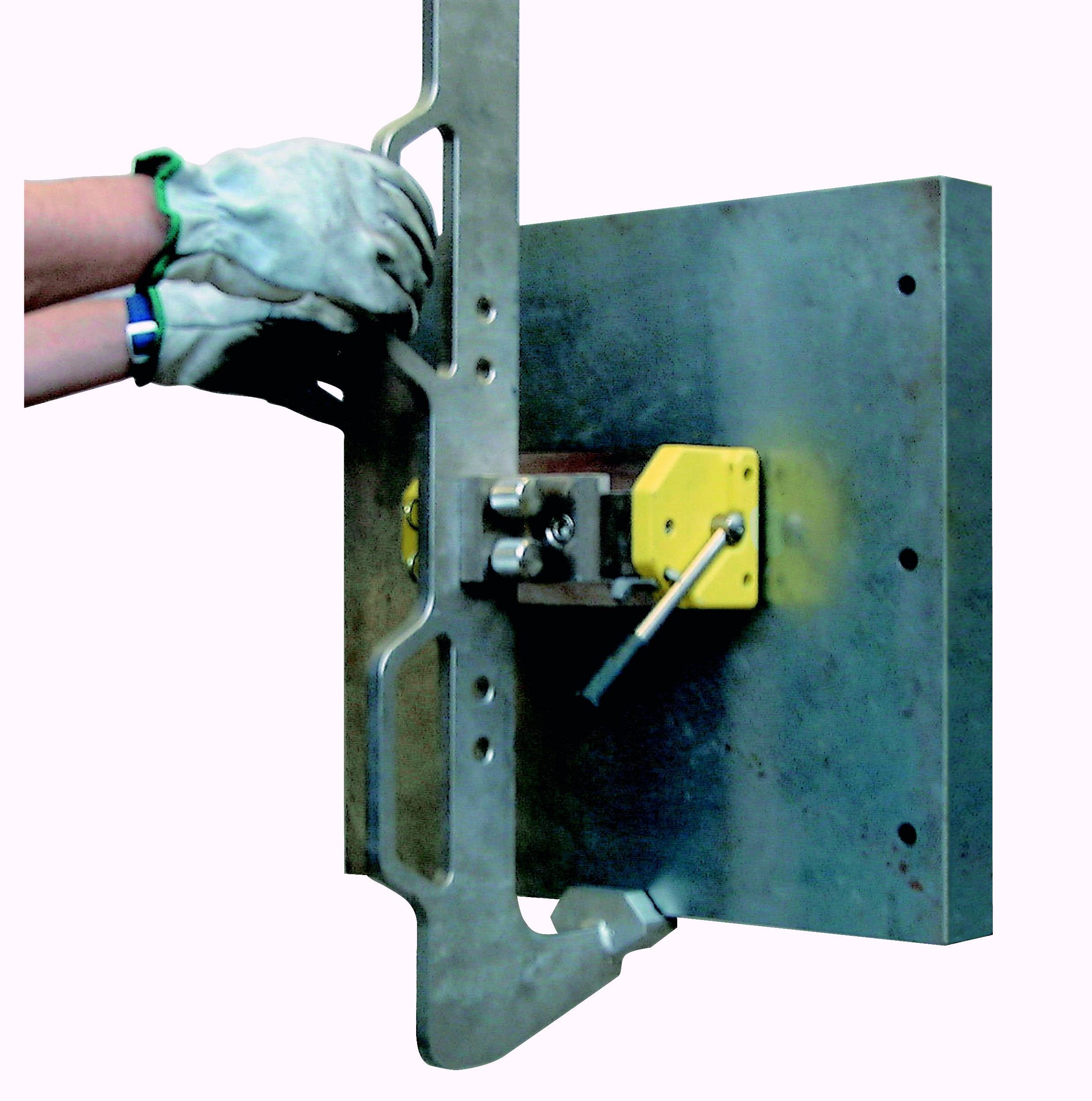

Lifting steel in the shear or vertical position with lifting magnets reduces capacity significantly. Vertical lifts or rotation of a load from horizontal to vertical can be effected safely and easily with a rated vertical load attachment system engineered for the Tecnomagnete MaxX series Permanent Magnetic Lifters. With the vertical load attachment, a load can be rotated from horizontal to vertical with safety. This provides a simple way to load steel blocks or castings into horizontal spindle milling machines or other processes. Well-engineered for safety, the vertical loading system comes in three sizes to suit 250 kg, 500 kg and 1-tonne lifting magnets and is easily adapted to work-pieces of different sizes.

Note: to lift large plates and sheets in vertical plane click here to see brochure including Tilting Beam (TB) permanent-electro lifting system, or click here for Video that includes TB system

Our consultants will provide knowledge and sensible answers.

Please phone: +61(2) 9971 7577 for magnet sales or email us
